Servlet/JSP简单生成图片验证码并后台验证功能

最近在学用JAVA Servlet/JSP来开发web应用，于是练手来做一个通过Servlet后台来生成图片验证码，并实现验证功能。

实现思路

先用单例模式写一个生成验证码图片的GenerateCode类，该类的createImage()方法返回BufferImage类，然后用Servlet来读取图片，GenerateCode对象在生成图片的同时也会生成一个验证码的字符串，可供后台验证的Servlet来验证前台post上去的验证码是否相同.

实现代码

Servlet类

VerifyCode.java(显示验证码图片)

package servlet;

import Utils.GenerateCode;
import com.sun.image.codec.jpeg.JPEGCodec;
import com.sun.image.codec.jpeg.JPEGImageEncoder;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.OutputStream;

@WebServlet(“/VerifyCode.do”)
public class VerifyCode  extends HttpServlet {

    private void processRequest(HttpServletRequest req, HttpServletResponse resp) {
        resp.setContentType(“image/jpg”);
        GenerateCode generateCode = GenerateCode.getInstance();
        try {
            OutputStream outputStream = resp.getOutputStream();
            JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder(outputStream);
            encoder.encode(generateCode.createImage());
            outputStream.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        processRequest(req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        processRequest(req, resp);
    }
}

Verify.java(验证post上来的验证码)

package servlet;

import Utils.GenerateCode;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@WebServlet(“/Verify.do”)
public class Verify extends HttpServlet {
    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        resp.setContentType(“text/html;charset=UTF-8”);
        String reallycode = GenerateCode.getInstance().getCode();
        String postcode = req.getParameter(“verifycode”);
        if(reallycode.equalsIgnoreCase(postcode)){
            req.getRequestDispatcher(“success.jsp”).forward(req,resp);
        }else
            resp.sendRedirect(“index.jsp”);
    }
}

Utils

GenerateCode.java(生成验证码图片和字符串)

package Utils;

import java.awt.*;
import java.awt.image.BufferedImage;
import java.util.Random;

public class GenerateCode{
    private static final int PW = 70;
    private static final int PH = 35;
    private static Random random = new Random();
    private static String[] fontnames = {“Chalkboard”,“Cochin”,“Skia”,“Apple Symbols”};
    private String codes=“012345678901234567890123456789abcdefghijkmnpqrstuvwxyzABCDEFGHJKLMNPQRSTUVWXYZ”;
    private static Color bgColor = Color.BLACK;
    private String code;
    private volatile static GenerateCode generateCode;

    public static GenerateCode getInstance(){
        if(generateCode ==null){
            synchronized (GenerateCode.class){
                if(generateCode ==null){
                    generateCode = new GenerateCode();
                }
            }
        }
        return generateCode;
    }

    public String getCode() {
        return code;
    }

    public void setCode(String code) {
        this.code = code;
    }

    private Color randomColor(){
        return new Color(random.nextInt(150),random.nextInt(150),random.nextInt(150));
    }

    private Font randomFont(){
        int index = random.nextInt(fontnames.length);
        String fontname = fontnames[index];
        int style = random.nextInt(4);
        int size = random.nextInt(5) + 25;
        return new Font(fontname,style,size);
    }

    private String randomCode(){
        int len = codes.length();
        String code = “”;
        for(int i=0;i<4;i++){
            int a = random.nextInt(len);
            code += codes.charAt(a);
        }
        return code;
    }

    public BufferedImage createImage(){
        BufferedImage image = new BufferedImage(PW,PH,BufferedImage.TYPE_INT_BGR);
        Graphics g = image.getGraphics();
        g.setColor(bgColor);
        g.fillRect(0,0,PW,PH);
        String num = randomCode();
        this.setCode(num);
        g.setColor(randomColor());
        g.setFont(randomFont());
        g.drawString(num,0,25);
        return image;
    }
}

jsp

index.jsp

<%@ page import=“java.awt.image.BufferedImage” %>
<%@ page import=“servlet.VerifyCode” %><%–
  Created by IntelliJ IDEA.
  User: onlyless
  Date: 11/17/18
  Time: 11:34
  To change this template use File | Settings | File Templates.
–%>
<%@ page contentType=“text/html;charset=UTF-8” language=“java” %>
<html>
<head>
    <title>Title</title>
</head>
<body>
<form action=“/Verify.do” method=“post”>
    <table>
        <tr>
            <td>
                <img src=“/VerifyCode.do”>
                <input type=“text” name=“verifycode” maxlength=“4”>
                <input type=“submit” name=“submit”>
            </td>
        </tr>
    </table>
</form>
</body>
</html>

success.jsp

<%–
  Created by IntelliJ IDEA.
  User: onlyless
  Date: 11/16/18
  Time: 16:46
  To change this template use File | Settings | File Templates.
–%>
<%@ page contentType=“text/html;charset=UTF-8” language=“java” %>
<html>
<head>
    <title>success</title>
</head>
<body>
<h1>success</h1>
</body>
</html>

不足

思路很简单，最终也实现出来了，但是我发现了一个BUG，在多个窗口同时请求验证时，由于后台很简单的读取GenerateCode的验证码，因此这多个窗口post上来的验证码就算全部都是正确的，但是只能验证最后生成验证码图片的那个post，要解决这个问题，我想应该要用到Cookie的知识，现在还在学习，待以后再解决这个问题。

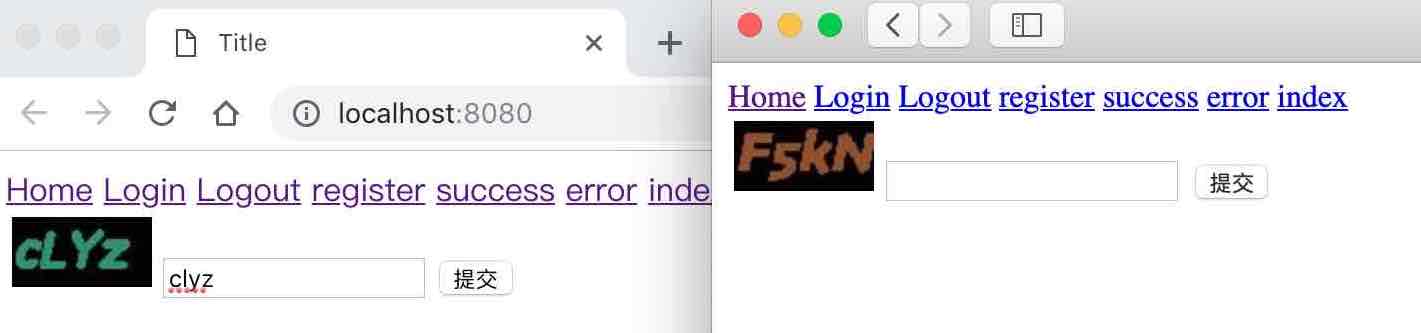

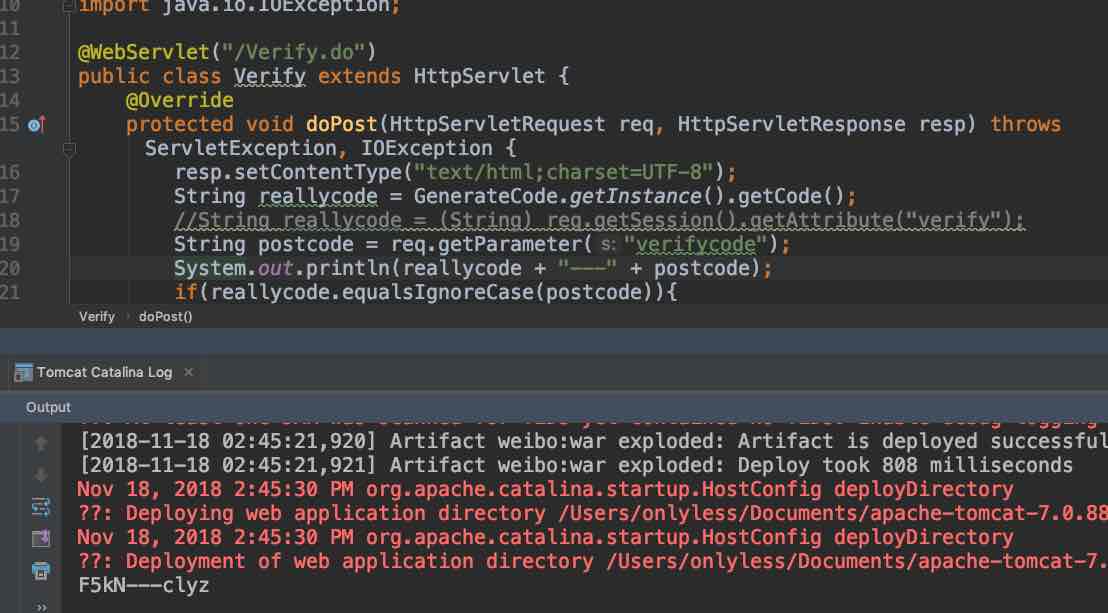

后台查看验证码不一致，后台正确的验证码是最后生成的验证码，导致之前的生成的验证码提交上去不匹配

后续

第二天学到了Cookie和Session的运用，发现用Session很简单就能解决上面的那个不足。

VerifyCode.java

…
JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder(outputStream);
encoder.encode(generateCode.createImage());
req.getSession().setAttribute(“verify”,generateCode.getCode());     //添加的代码
outputStream.close();
…

Verify.java

        …
        resp.setContentType(“text/html;charset=UTF-8”);
//        String reallycode = GenerateCode.getInstance().getCode();
        String reallycode = (String) req.getSession().getAttribute(“verify”);      //修改的代码
        String postcode = req.getParameter(“verifycode”);
        System.out.println(reallycode + “—“ + postcode);
        ….

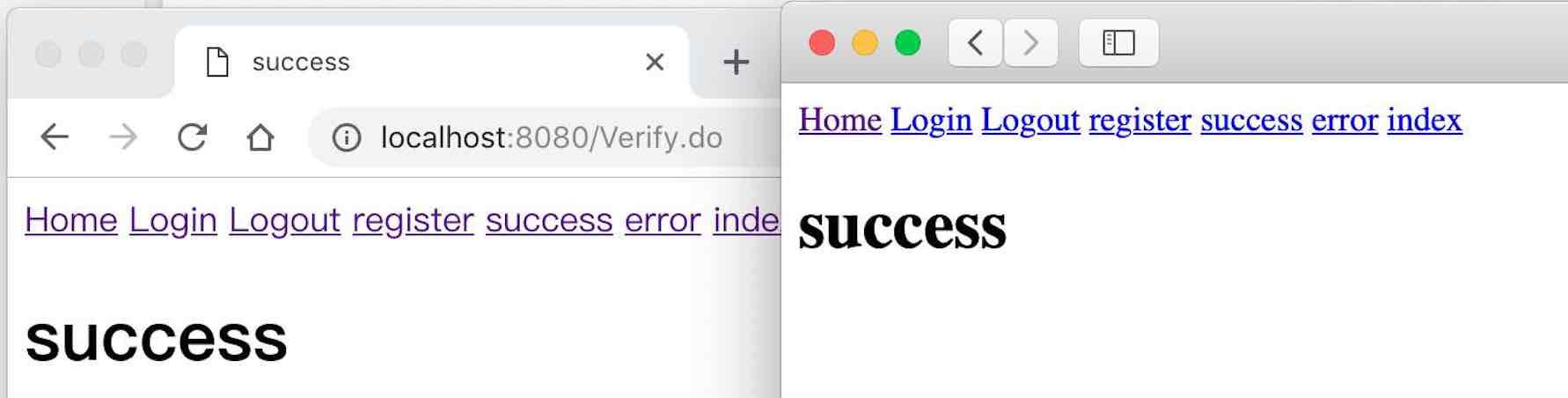

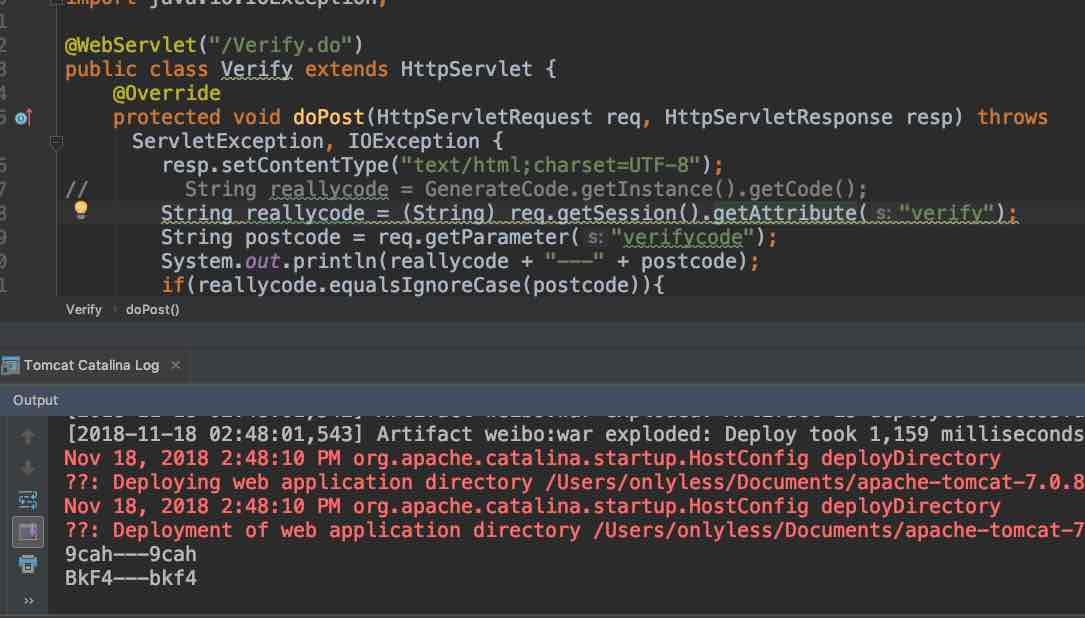

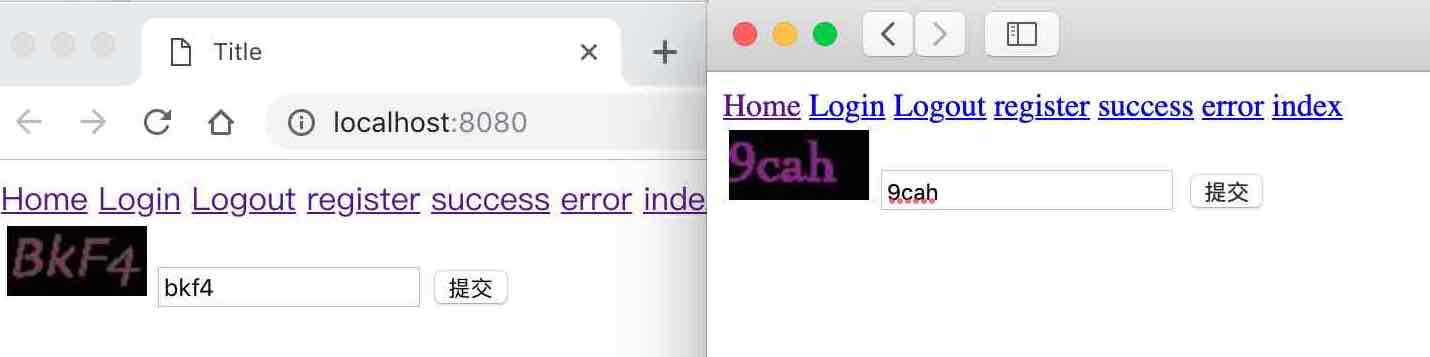

两个浏览器同时登陆都成功登陆，后台查看验证码一致

不过我发现这个问题在同一个浏览器上还是存在，原因很简单，用一个浏览器不同窗口的Session都是一样的，这样就导致新生成的验证码覆盖掉以前Session绑定的验证码，导致问题产生，这个问题我测试了一下学校的教务系统和12306的登录验证码，都存在这样的问题。不过这个一般谁也不会同时开多个窗口登录，登录失败一个，换以前的窗口登录，这样导致一直匹配到的不是产生最新的验证码。
